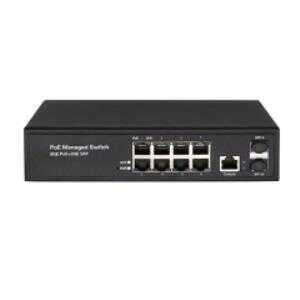

Entegron 48V or 24V POE Output 8-Port Gigabit Managed POE Switch with 2 SFP Slots
10.731,62 TL
Kategori
Marka
Stok Kodu
lls_ENTDPS8200-8P-2FM
* 1.025,76 TL den başlayan taksitlerle!!
ENTEGRON ENTDPS8200-8P-2FM Full Gigabit
10/100/1000Mbps 8 Ports Web Yönetilebilir-Managed Switch
Overview
TS8200-8P-2FM-Auto is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. 8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC) ，Provide a comprehensive security protection system Perfect QoS strategy and rich VLAN function，Management and maintenance are simple and can be applied to small and medium enterprise core layer of community and school.
Main Features
2.Support port-based QOS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions
3.Support IEEE 802.1p Qos ,TOS/DSCP Qos
4.Support port trunking/aggregation
5.Support rate control, broadcast storm suppression
6.Support port flow control
7.Support port mirror
8.Support IGMP Snooping V1/V2, MLD snooping
9.Support IEEE802.1X based port security
11.Support Dos attack prevention
12.Support configure port speed, status, poe status, poe reset
13.Support SNMP,web GUI, CLI management
14.Support mac list,mac search
Specifications:
Model
ENTTS8200-8P-2FM
Port
8*10/100/1000M
Reset KEY
1
bandwidth
56G
Packet forwarding
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
CPU
500MHZ
RAM
128M
MAC
8K
Buffer
1.5Mb
Transmission
Store and forward
Environmental
Working Temperature：-20℃～65℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing
Product size
158(L)*101(W)*25(H)mm
Packing size
410mm*280mm*100mm（L*W*H）
Weight
3.5kg
Power in
AC 90~265V 50/60hz MAX 150W
DC 44-57V MAX 3A
Power
IEEE802.3af/at, Port PoE MAX 30W，
Active 24V Port PoE MAX 25W
Configurable 48V/24V POE output
Support 48V or 24V POE device power
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
|
Working Temperature：-20℃～65℃ Storage temperature ：-40℃～70℃ |
|
Working Humidity ：10%～90% RH non-condensing Storage Humidity：5%～90% RH non-condensing |
DC 44-57V MAX 3A
Active 24V Port PoE MAX 25W
Configurable 48V/24V POE output
Support 48V or 24V POE device power
